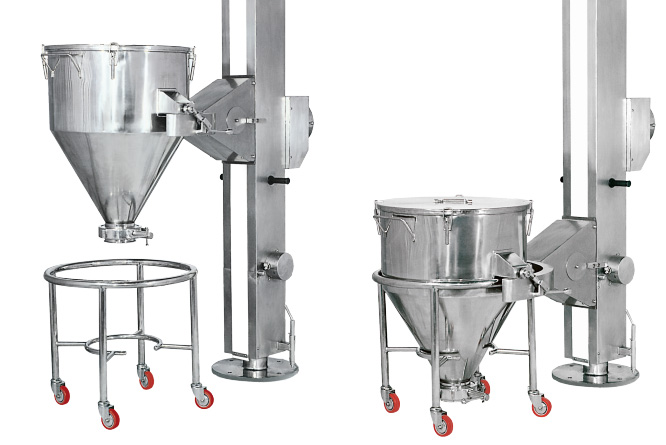

Rapid Mixer GranulatorTapasya's Elevator device is custom designed to lift and position any type of container involved in solid dosage manufacturing and also for liquid compounding operation. This system ensures dust free transfer of in-process materials enhancing cGMP standard, and simultaneously eliminating laborious manual operation.

Elevator operates by engaging the container to a semi-circular / single hook / fork type / platform, lift arm attached to a column. The container is then raised or lowered by hydraulic system with built in safety parameters. The four point contact bearing on the column base with a low resistance factor makes it possible to position loaded container by hand radially, to discharge the contents in the process equipments.

  • Closed Column construction with floor and ceiling fastening

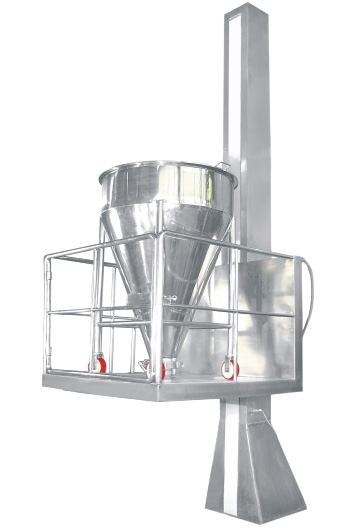

  • Also available in self standing pivoted execution
  • Material of construction is SS clad MS column/SS column
  • Adjustable mount stop
  • Double acting in-house manufactured Hydraulic Cylinder with 3 stage Fail safe seals
  • Cylinder designed for an operating pressure of 100 BAR & has a Hose burst protection system
  • Solid Machined trolley made out of 30 MM Machined Frame
  • 2 no's 8 MM SS 304 Wire ropes instead of chain
  • Lift Lock for safety provided
  • Imported Mono Block Power Pack
  • Control Cabling and rigid piping included
  • CE Certified meeting 19 EN specifications
  • Built-in provision for the Vibratory Sifter/ Mill to be electrically connected
Benefits For You
  • Dust-free & leak-free transfer operations
  • Eliminates manual handling & tedious scooping
  • Low maintenance
  • Designed to European Safety Standards & cGMP standards
  • Varied applications including charging of Sifters, RMG, Compression machine, Packing machine, blenders, etc.
  • Variety of Optional features available including full stainless steel construction, Height > 4 mtrs, Rigid design, Mobile design upto 100 kgs load
Benefits For You
  • Pharmaceutical
  • Nutraceutical
  • Food
  • Chemical
  • Cosmetics

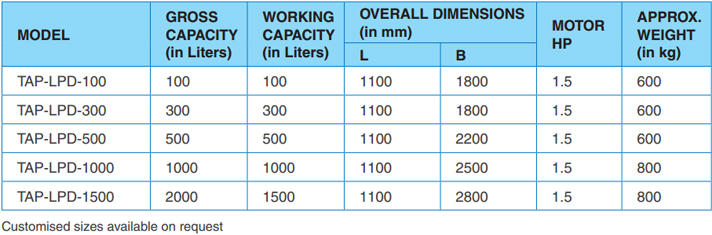

Technical Specifications


Oscillating Granulator High Shear Mixer Granulator Planetary Mixer
